GS300 small band saw, fully automatic
Technical Parameter
|
GS280 |
GS300 |
|
| Maximum Cutting capacity(mm) | ●: Ф280mm | ●: Ф300mm |
| ■: W280xH280mm | ■: W300xH300mm | |
| Bundle cutting capacity | Maximum: W280mmxH100mmMinimum:W190mmxH50mm | Maximum: W300mmxH100mmMinimum:W200mmxH55mm |
| Main motor power(KW) | 3kw,3 phase, 380v/50hz or customized | 3kw,3 phase, 380v/50hz or customized |
| Hydraulic motor power(KW) | 0.42kw, 3 phase, 380v/50hzor customized | 0.42kw, 3 phase, 380v/50hzor customized |
| Cooling motor power(KW) | 0.04kw, 3 phase, 380v/50hz or customized | 0.04kw, 3 phase, 380v/50hz or customized |
| Saw blade speed(m/min) | 40/60/80m/min(by cone pulley) | 40/60/80m/min(by cone pulley) |
| Saw blade size(mm) | 3505*27*0.9mm | 3505*27*0.9mm |
| Maximum feeding length/time | Maximum feeding length is 500mm/time, if cut longer than 500mm, the feeding table could feed several times repeatedly. | Maximum feeding length is 500mm/time, if cut longer than 500mm, the feeding table could feed several times repeatedly. |
| Work piece clamping | Hydraulic vice | Hydraulic vice |
| Saw blade tension | manual | manual |
| Oversize of band saw(mm) | 1950x1850x1600mm | 3050x1950x1650mm |
| Weight(kg) | 950kg | 1000kg |
| Optional configuration | 1, 20-80m/min speed regulated by frequency converter2, saw blade tension: hydraulic
3, chip conveyor device: screw type chip conveyor will convey chips automatically to the chip store box when machine is in operation. |
1, 20-80m/min speed regulated by frequency converter2, saw blade tension: hydraulic
3, chip conveyor device: screw type chip conveyor will convey chips automatically to the chip store box when machine is in operation. |
Related products
-
13″ Precision Bandsaw
Specifications Sawing machine model GS330 double-column structure Sawing capacity φ330mm □330*330mm (width*height) Bundle sawing Max 280W×140H min 200W×90H Main motor 3.0kw Hydraulic motor 0.75kw Pump motor 0.09kw Saw band specification 4115*34*1.1mm Saw band tension manual Saw belt speed 40/60/80m/min Working clamping hydraulic Workbench height 550mm Main drive mode Worm gear reducer Equipment dimensions About...
-

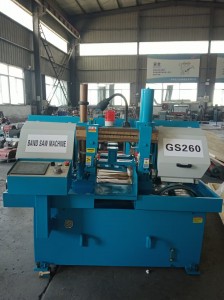

GS260 fully automatic Horizontal Sawing Machine
