Short Description:

1.coolant pump ensures longer service life of saw blade

2. scale on the vise allows easy adjustments for angle cuts between 0°~60°and 0°~-45°

3. quick adjusting vise for angular cuts- the saw frame swivels, not the material

4. G4025B adopts hydraulic step less speed regulation.

5.Vertical force controlled through manual cylinder or hydraulic cylinder.

6.Strong structure for big capacity cutting.

7. One piece cast-iron construction of the frame of G4025 / G4025B Horizontal metal band saw machine ensure exact angles and low vibration

8. Using German technology, durable saw, lower noise,automatic power cut off after processing.

9. It is widely used for sawing various kinds of bars and profiles of common steel, tool steel, copper and aluminum.  Suitable for the maintenance and production of small batch materials and cutting process of doors and stores.


Product Detail

Product Tags

Technical Parameter

Model



G4025 Manual system

G4025B Manual system with hydraulic descent controller
Cutting capacity(mm)

0°

 ● Φ250
■ 280(W)×230(H)		 ● Φ250
■ 280(W)×230(H)

45°

 ● Φ190
■ 180(W)×230(H)		 ● Φ190
■ 180(W)×230(H)

60°

 ● Φ120
■ 115(W)×230(H)		 ● Φ120
■ 115(W)×230(H)

-45°

 ● Φ190
■ 180(W)×230(H)		 ● Φ190
■ 180(W)×230(H)
Blade size (L*W*T)mm    2750x27x0.9 2750x27x0.9
Saw blade speed(m/min)  53/79m/min(by cone pulley) 53/79m/min(by cone pulley)
Voltage 380V 50HZ 380V 50HZ
Blade drive motor (kw)    0.85KW/1.1KW 0.85KW/1.1KW
Coolant pump motor(kW)  0.04KW 0.04KW
Work piece clamping      Hand operated jaws Hand operated jaws
Saw blade tension Manual Manual
Saw frame feeding type Manual Cylinder Hydraulic cylinder
Material feeding type   Manual Manual
Main drive Worm gear Worm gear
Over size (LxWxH)  1500x900x1300mm 1500x900x1300mm
Net weight(KG)  350 450
xaing

Machine Details

Angle saw double bevel miter s2

1. One piece cast-iron construction, exact angles and low vibration.

2. Move the saw frame, not the material to achieve the miter cut.

Angle saw double bevel miter s3
Angle saw double bevel miter s5

3. Band saw with manual cylinder(G4025) or hydraulic cylinder(G4025B) for infinitely variable saw frame feed.

4. band saw have 2 kinds of saw blade speeds.

Angle saw double bevel miter s4
Angle saw double bevel miter s7

5. rigid vise with quick action clamping.

6. heavy base.

Angle saw double bevel miter s6

Related Product

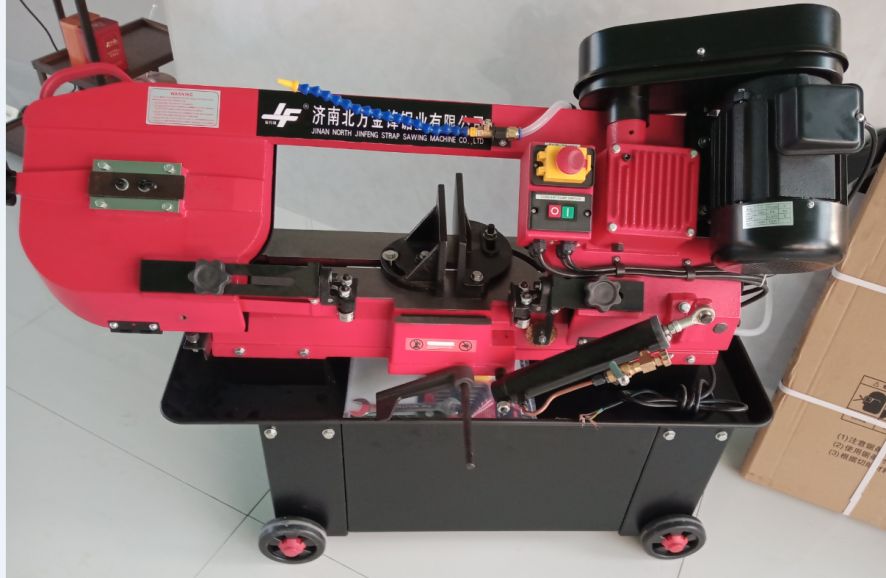

G4018

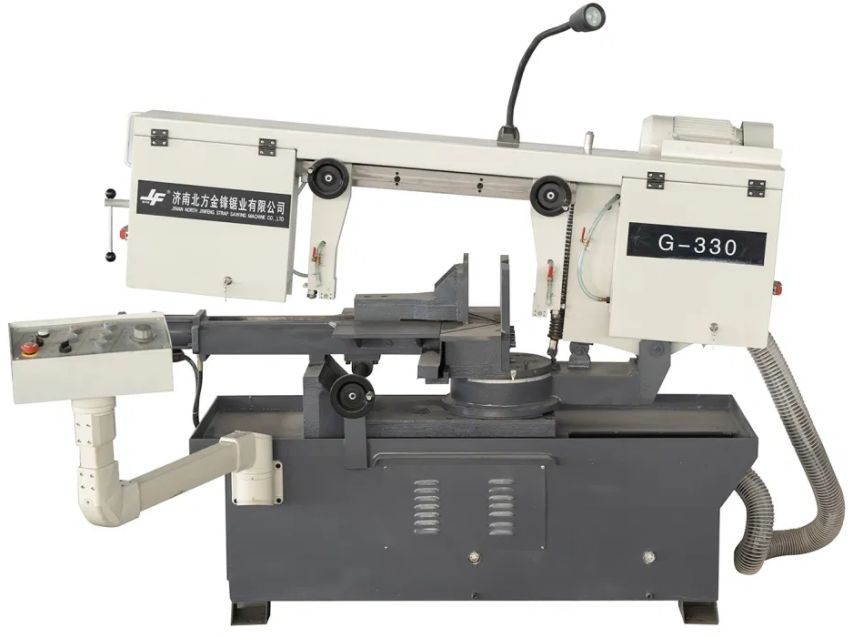

G-330
